Smart, Scalable Charging for Homes, Businesses & Fleets

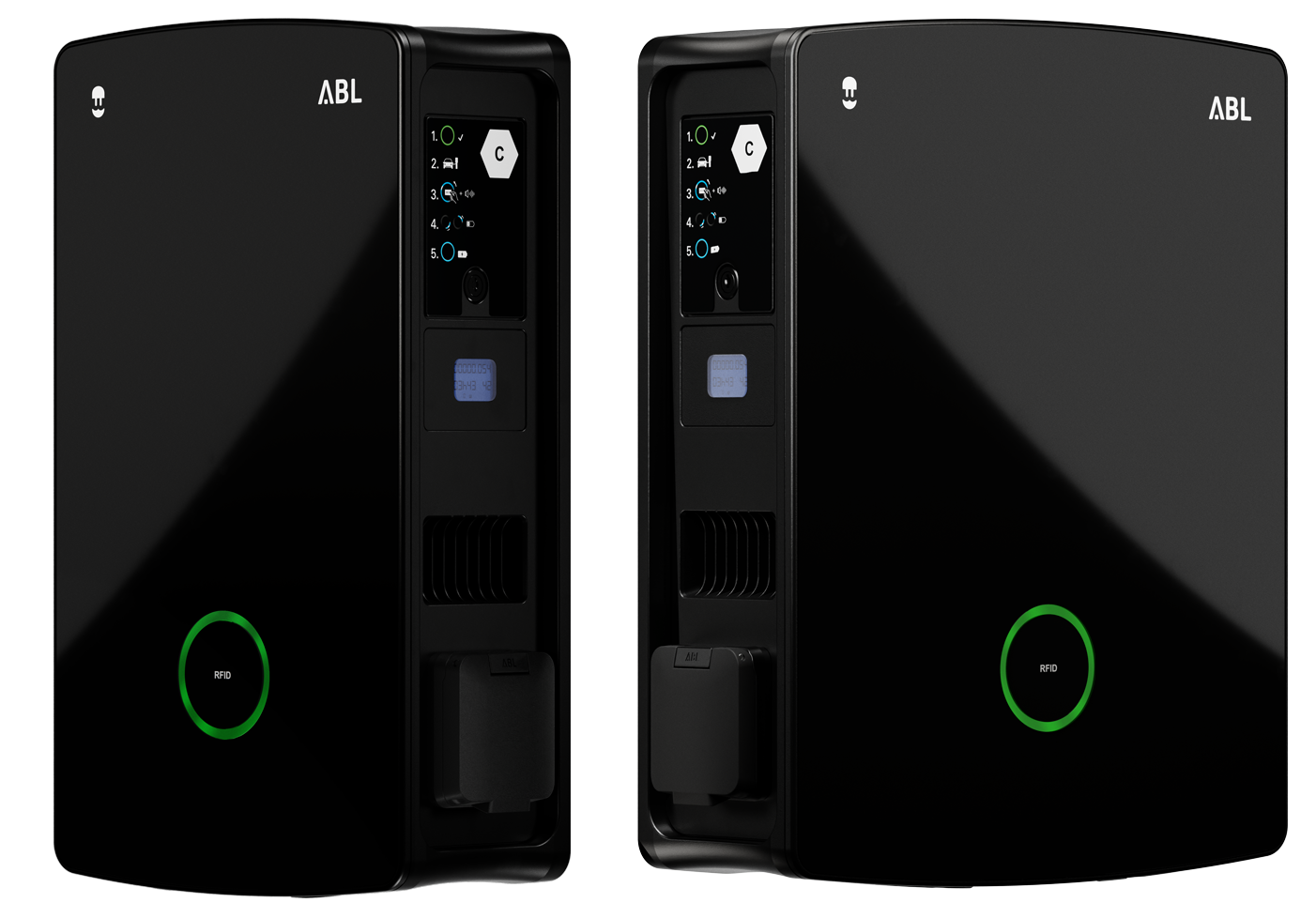

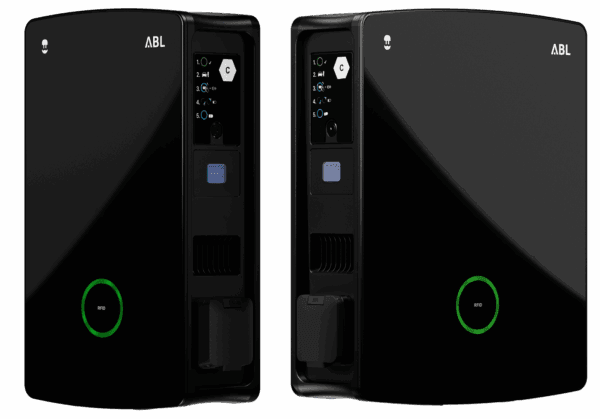

The Wallbox eM4 22kW is a high-performance AC charging station designed to meet the needs of residential, commercial, and fleet environments. With options for single or dual Type 2 sockets, it delivers up to 22 kW per port, ensuring efficient and reliable charging for electric vehicles.
Key Features
Flexible Charging Options
Available in single or dual socket configurations, allowing simultaneous charging of two vehicles at up to 22 kW each.Advanced Connectivity
Supports Ethernet, Wi-Fi, and optional 4G LTE connections, enabling seamless integration with backend systems via OCPP 1.6 and Modbus TCP protocols.Dynamic Load Management
Optimizes energy distribution to prevent grid overloads, especially when integrated with the optional ABL Energy Meter.User-Friendly Interface
Features a multi-colored LED ring for visual feedback and supports RFID, QR code, and app-based user authentication.Robust and Durable Design
Built with an IP55 and IK10 rated enclosure, ensuring resistance to dust, water, and impact, suitable for both indoor and outdoor installations.Easy Installation and Configuration
Designed for quick setup by a single technician, with flexible cable entry points and configuration via the ABL Configuration App for iOS and Android.
Technical Specifications
Maximum Charging Power: 22 kW per socket (3 x 32 A)
Connector Type: Type 2 socket (IEC 62196-2)
Input Voltage: 230 / 400 V AC
Frequency: 50 Hz
Protection: Integrated RCCB Type A (30 mA) and DC fault current detection (≥6 mA)
Energy Meter: MID-compliant (optional)
Communication Protocols: OCPP 1.6 (JSON & SOAP), Modbus TCP
Connectivity: Ethernet, Wi-Fi, optional 4G LTE
Operating Temperature: -25°C to +40°C
Dimensions (H x W x D): 516 mm x 306.5 mm x 145 mm
Weight: Approximately 10.7 kg
Enclosure Ratings: IP55 (Ingress Protection), IK10 (Impact Protection)
Mounting: Wall-mounted or pole-mounted options available
