Compact, Smart, and Powerful EV Charging Solution

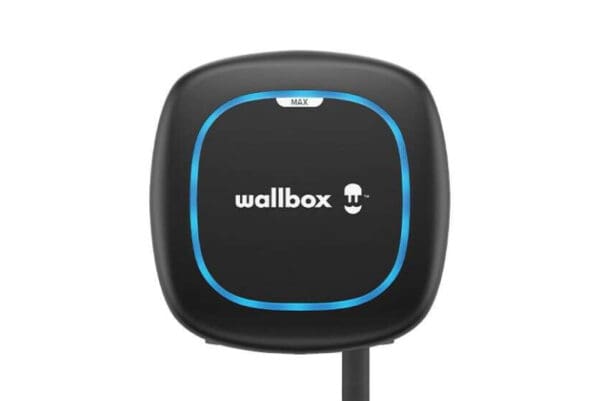

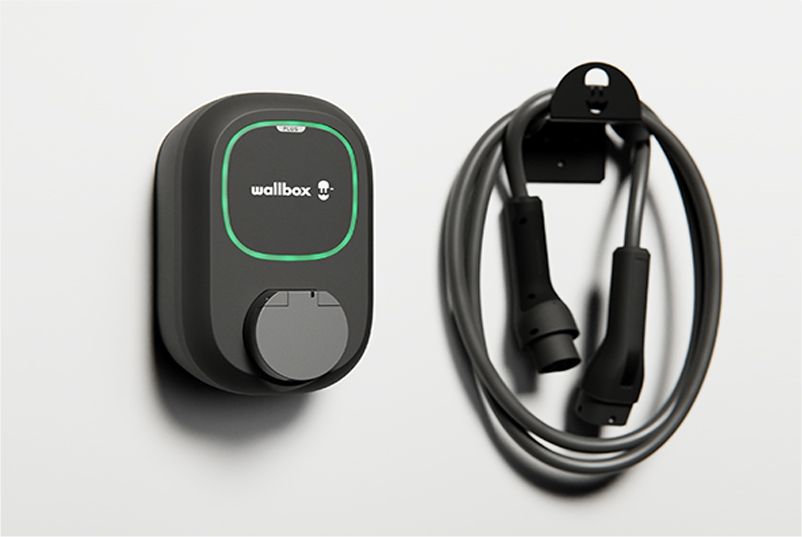

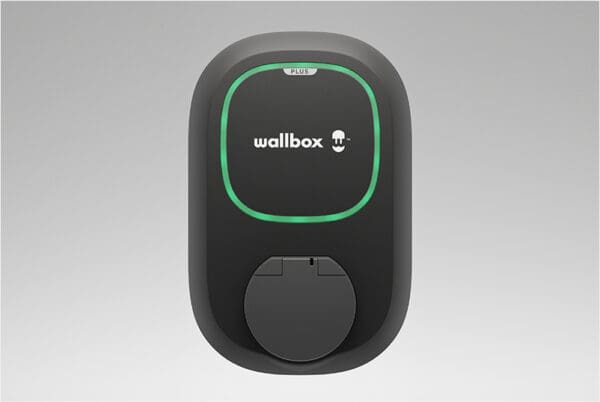

The Wallbox Pulsar Plus 22kW Socket in black delivers top-tier performance in a sleek, minimalist design. Engineered for both residential and commercial charging, it combines high-speed power, smart features, and durable construction—all in one compact unit.
Key Features
High-Speed Charging
Charges at up to 22 kW on three-phase power for fast and efficient EV top-ups.Smart App Control
Built-in Wi-Fi and Bluetooth connectivity let you monitor and manage charging from anywhere using the myWallbox app.Dynamic Load Balancing
Features like Power Boost and Dynamic Power Sharing intelligently manage energy use to avoid overloads.Compact & Stylish
Sleek black finish with a distinctive LED halo ring that visually indicates status at a glance.Robust & Reliable
Weather- and impact-resistant, with IP55 and IK10 ratings for safe indoor or outdoor installation.Flexible Setup
Supports both single-phase and three-phase installations, with adjustable current from 6A to 32A.
Technical Details
Max Output: 22 kW (32A, 3-phase)
Connector: Type 2 socket with shutter
Voltage Input: 230V (1-phase) / 400V (3-phase)
Adjustable Current: 6A to 32A
Enclosure Ratings: IP55 (dust/water), IK10 (impact)
Leakage Protection: AC 30 mA / DC 6 mA
Operating Temp: -30°C to +40°C
Dimensions: 204.3 mm x 313 mm x 142.5 mm
Weight: Approx. 2.5 kg
